VMC Precision Machining
| Model Number | CVM-640 |
| Z – Axis Travel | 500 mm |
| X – Axis Travel | 650 mm |
| Y – Axis Travel | 450 mm |
| Brand | Cosmos |
| Spindle Nose To Table Surface | 100-600 mm |
| Spindle Center To Column Surface | 500 mm |
| Table Dimension | 800 x 450 mm |
| Maximum Load | 400 Kg |
| Table T-slot | 18 mm x 4 mm x 100 mm |
| Spindle Speed | 8000 rpm |
| Spindle Power Mitsubishi (cont / Int) | 5.5 KW / 7.5 KW |
| Spindle Power Fanuc (cont / Int) | 7.5 KW / 11 KW |
| Spindle Power Siemens (cont / Int) | 9 KW / 22 KW |
| Taper | BT 40 / BBT 40 |
| Atc Type | ARM |
| Maximum Tool Length | 250 mm |
| Maximum Tool Weight | 8 Kg |
| Tool Diameter (With Adjacent Tool) | 80 mm |
| Tool Diameter (Without Adjacent Tool) | 130 mm |
| Tool Charging Time (Tool To Tool) | 2.5 sec |
| Positioning Accuracy | 0.01 mm |
| Repeatablility | + – 0.003 |
| Floor Space | 2150 W x 2050 D |
| Net Weight ( With Atc ) | 4500 Kg |
| Power Capacity | 20 KVA |
Marble Mining Chain Saw Machine Chain Parts
Chain 1

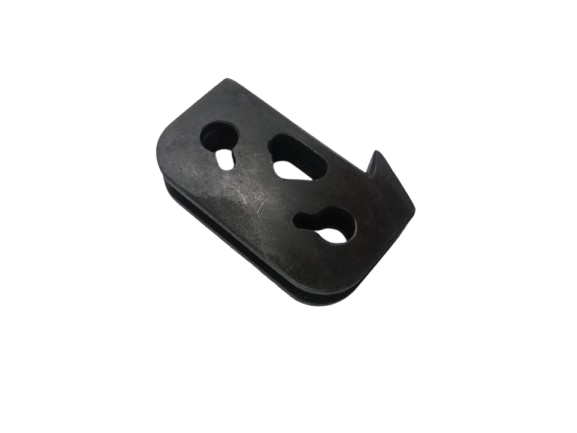

BRACKET
LINK
L PIN
CENTER PIN
h0
h1
h2
h3
h4
h5
h5.1
h6
h7
HOLDER TYPE
HOLDER TYPE 2
SPROCKET
SPROCKET 9 TEETH
SPROCKET 12 TEETH
GUIDE WHEEL
GUIDE WHEEL 7.1
GUIDE WHEEL 7.2
GUIDE WHEEL 7.3
INSIDE OUTSIDE GUIDE STRIP
HEAD
GUIDE STRIP WITH HEAD
CENTER PIECE
ASSEMBLY
Chain 2
BRACKET
LINK
L PIN
CENTER PIN
h0
h1
h2
h3
h4
h5L
h5R
h6
h7
HOLDER SET
SPROCKET
GUIDE WHEEL
CENTER PIECE
INSIDE OUTSIDE GUIDE STRIP WITH HEAD
10
Welcome to Sanjay Engineering – a name synonymous with precision, innovation, and reliability. Founded in Ahmedabad and nestled in the vibrant locality of Bardolpura, we have emerged as a distinguished manufacturer dedicated to exceeding your expectations.
